Bubble Flare vs. Double Flare: How to Tell the Difference (and Never Mix Them)

Updated July 2026 by the 4LifetimeLines team — we manufacture brake lines and flaring tools, and we've helped thousands of DIYers and shops get leak-free flares.

Bubble Flare vs. Double Flare: What's the Difference?

Every hard brake line ends in a flare — the shaped end of the tubing that seals against the fitting seat. Get the flare type wrong and the connection will never seal, no matter how hard you tighten it. The two types you'll encounter are the double flare (SAE/inverted, 45°) and the bubble flare (DIN/ISO). Here's how to tell them apart, which one your vehicle uses, and how to make both correctly.

What They Look Like

Quick Comparison

	Double Flare	Bubble Flare
Also called	SAE, inverted, 45°	DIN, ISO
Common on	American & Asian vehicles	European vehicles (VW, BMW, Mercedes, Volvo)
Shape	Funnel/cone — tubing wall folded over twice	Rounded button, like a screw head
Typical threads	SAE (e.g. 3/8"-24, 7/16"-24)	Metric (e.g. M10x1.0, M12x1.0)
Forming steps	Two operations (bubble first, then folded)	One operation
Interchangeable?	No — never mix them.

What Is a Double Flare?

A double flare is made in two operations: the tool first forms a bubble, then a second die folds the tubing wall back into itself, creating a double-thickness 45° cone. That folded wall is what makes it strong — it resists cracking under the 1,000+ PSI a braking system can generate and gives the tube nut a reinforced seat to clamp against. It's the standard on most American and Asian vehicles and is the flare called for by SAE J533.

What Is a Bubble Flare?

A bubble flare (DIN/ISO) is formed in a single operation and looks like a rounded button on the end of the line. If you've ever made a double flare, you've already made one — the bubble is literally the halfway stage of a double flare. It's the factory standard on most European vehicles and nearly always pairs with metric tube nuts.

How to Identify Which Flare You Have

1. Look at the line end: a funnel-shaped cone is a double flare; a rounded button is a bubble flare.
2. Check the tube nut threads: SAE threads usually mean double flare; metric usually means bubble — but always confirm against the port, especially on older or previously repaired vehicles.
3. Match the port seat: the female seat in the caliper, master cylinder, or ABS block is the final word. When in doubt, take the old line with you.

Can You Use a Bubble Flare Instead of a Double Flare?

No. The seat geometry is completely different and the joint will leak — brake fluid, under pressure, right where you can't afford it. And never use a single flare on a brake line: the un-reinforced edge cracks under pressure. Single flares are for low-pressure lines only.

Why Flare Quality Matters (and Why Flares Leak)

Most brake line leaks at a fitting come down to an imperfect flare: off-center cone, cracked edge from over-working the tube, a burr that wasn't deburred, or the wrong flare for the seat. A quality flaring tool, a square cut, and proper deburring fix nearly all of it. Copper-nickel tubing is the most forgiving material to flare by hand — another reason we recommend it for DIY repairs. If the line itself is rusted, kinked, or pin-holed, flaring won't save it — replace it with one of our brake line kits, which include tubing and fittings for the whole vehicle. For the complete process, follow our step-by-step guide to how to flare a brake line.

The Right Tool for Both Flares

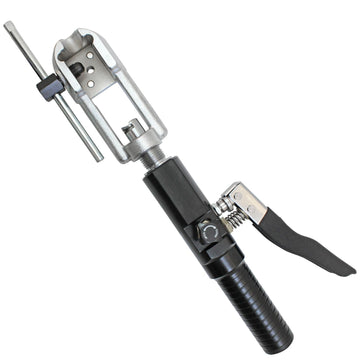

Our Universal Hydraulic Flaring Tool makes both SAE double flares and DIN bubble flares on steel, stainless, and copper-nickel line — on or off the vehicle. It's the tool we recommend for shops doing daily line work and for DIYers who want their first flare to seal.

FAQ

Is a bubble flare the same as a DIN or ISO flare?

Yes — bubble, DIN, and ISO all refer to the same flare.

Do all European cars use bubble flares?

Most do from the factory, but repairs may have changed things. Always verify at the port.

What flare does copper-nickel brake line use?

Copper-nickel line accepts either flare type — form the flare your vehicle's fittings require.

What happens if I use a single flare on a brake line?

It can crack and leak under braking pressure. Never use a single flare on a brake line.
