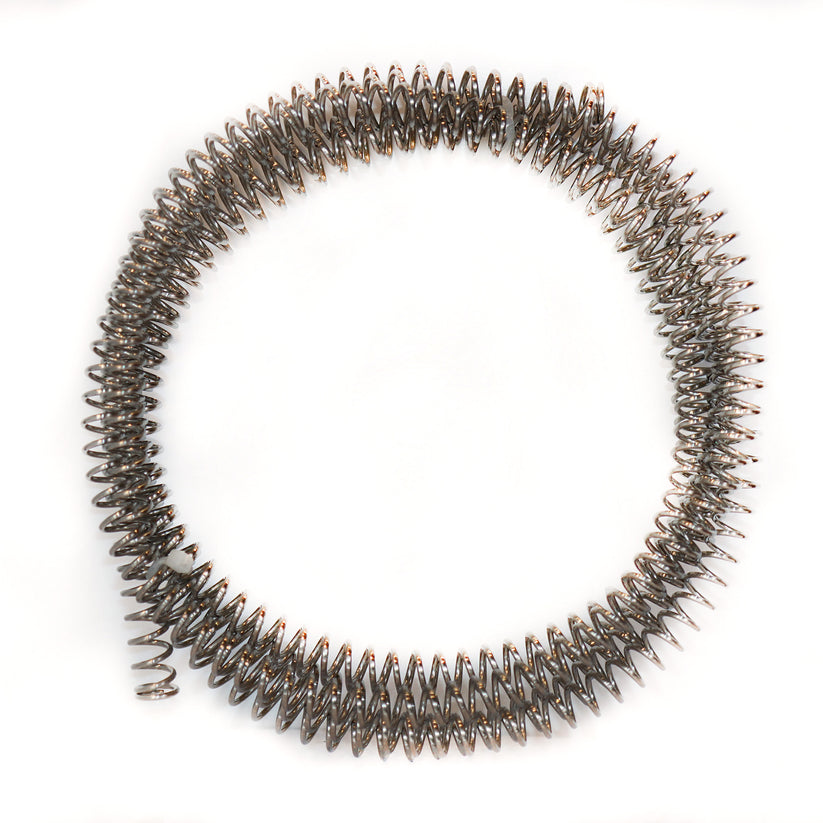

3/16″ × 8′ Stainless-Steel Spring Gravel & Rock Guard

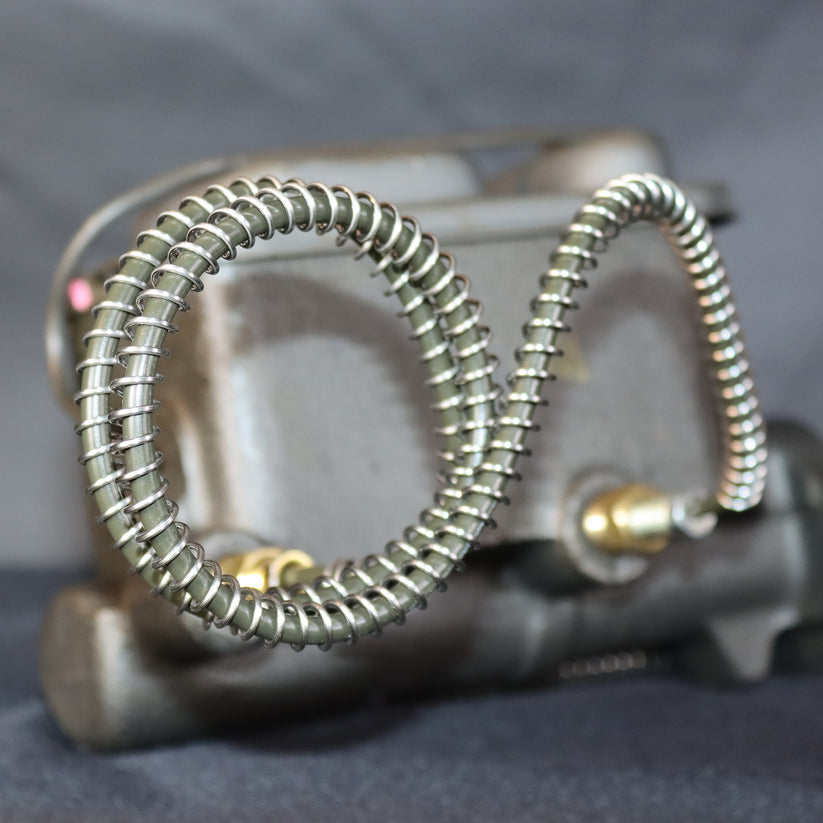

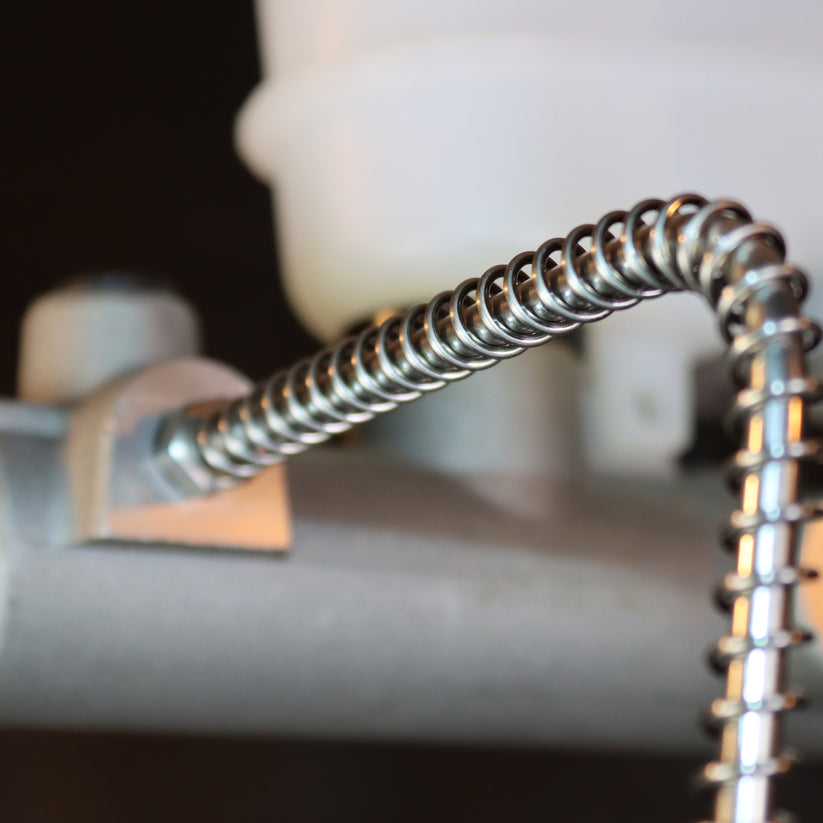

Keep your brake lines safe from off-road hazards with the 4LifetimeLines® 3/16″ × 8′ Stainless-Steel Spring Gravel & Rock Guard. This heavy-duty coil slips over standard 3/16″ tubing to deflect stones, mud, and brush before they can nick or puncture your lines. Crafted from marine-grade 316L stainless steel, it resists corrosion and stays flexible in even the harshest conditions—so you can tackle trails, farms, or back-roads without worry.
Key Benefits
Our gravel guard combines strength and versatility in one simple solution. The spring-coil design absorbs impacts and sheds debris, preventing dents and abrasion on your brake, fuel, or hydraulic lines. Its universal fit wraps snugly around most 3/16″ hard lines—no special tools or fittings required. And because it’s 100% stainless-steel, you’ll enjoy years of rust-free performance from winter gravel roads to coastal salt air.
Features & Specifications
Material: 316L marine-grade stainless steel for maximum corrosion resistance

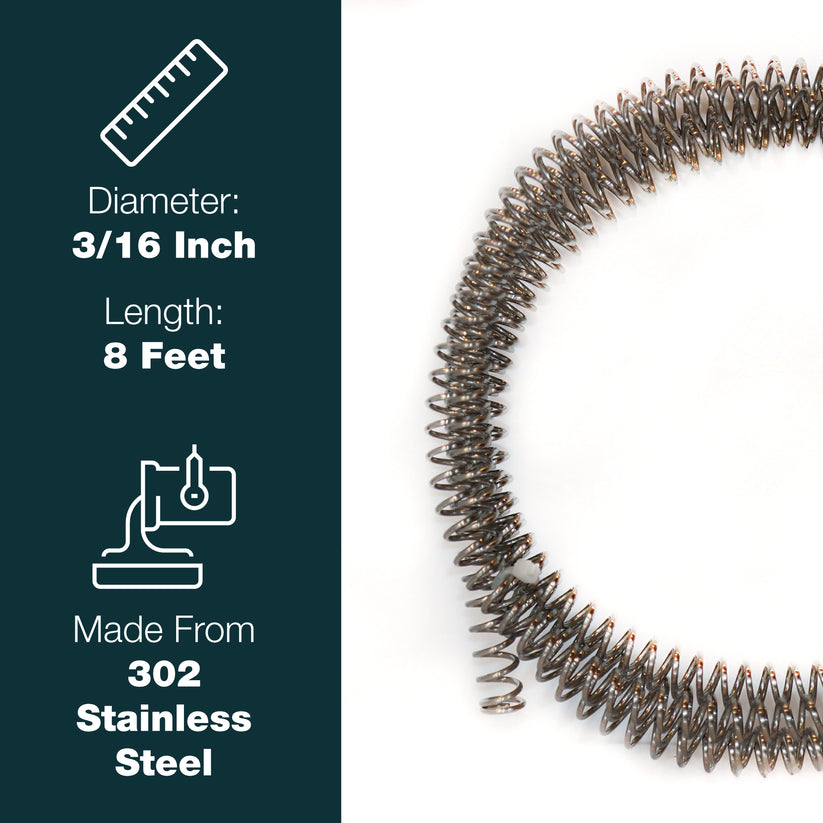

Dimensions: 3/16″ inner diameter × 8′ length, cut-to-fit for any application
Design: Helical coil deflects rocks, gravel, and debris while allowing fluid routing
Compatibility: Fits standard 3/16″ brake, fuel, and hydraulic tubing without slipping
Installation: Simply slide onto tubing before routing; trim with snips for precise length
Installation & Usage
Measure the run of your 3/16″ line and cut the coil guard 1″ longer than your tubing length.
Slide the guard over one end of the line and push it along the tube until it covers the entire exposed section.
Secure each end with a zip-tie or screw-clamp if extra retention is desired.
Route your line as usual—now protected against abrasion and impacts.
This spring guard is ideal for off-road trucks, UTVs, farm equipment, and any vehicle exposed to gravel, brush, or rock-strewn paths. Pair it with our stainless-steel tubing coils and flaring tools for a complete corrosion-proof hard-line system.
Ready to protect your brake lines from the elements? Add the 3/16″ × 8′ Stainless-Steel Spring Gravel & Rock Guard to your cart today and drive with confidence—wherever the trail leads.
