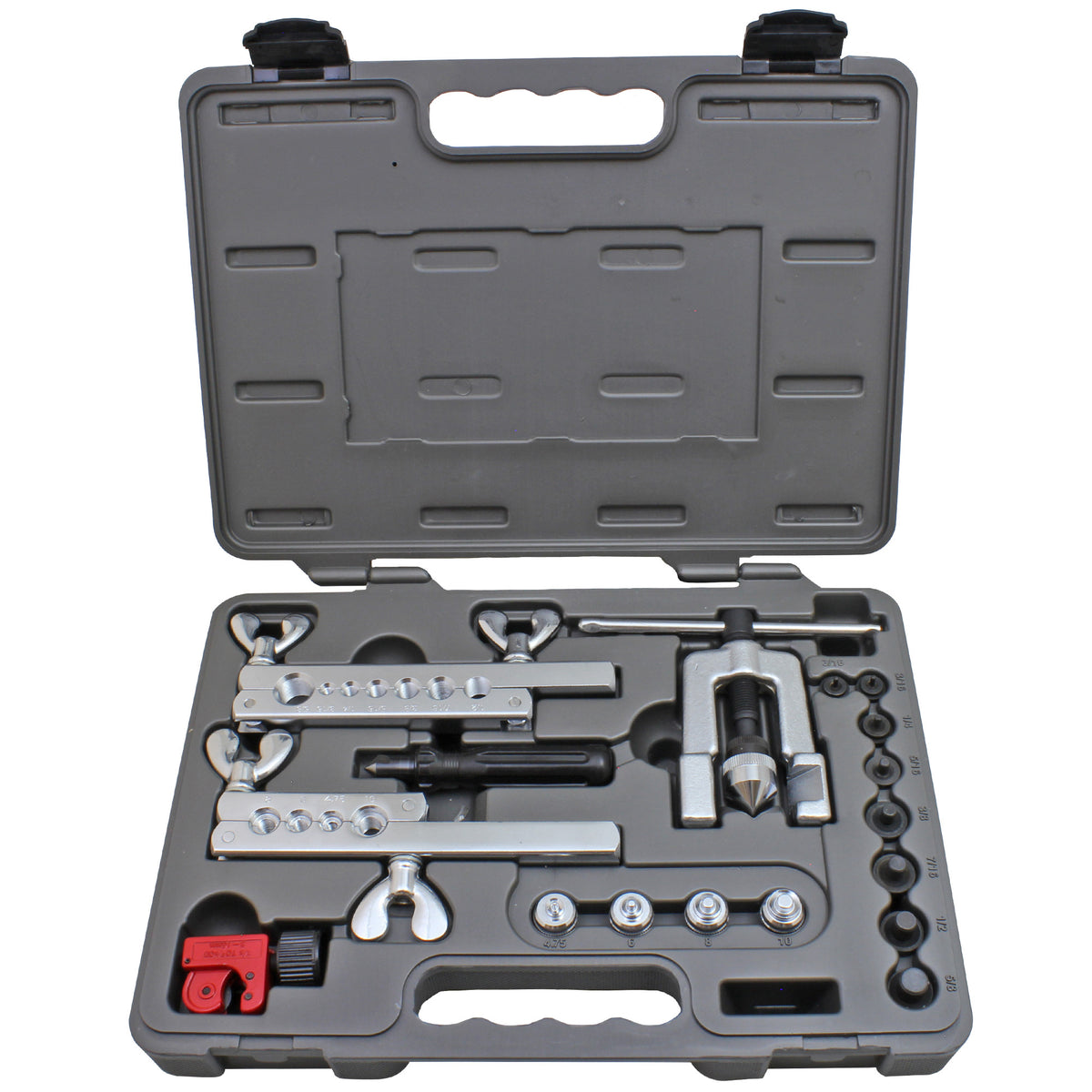

4LifetimeLines Professional Brake Line Flare Tool Kit (LTFT-P) open case with flaring bars, adapters, yoke, cutter and reamer

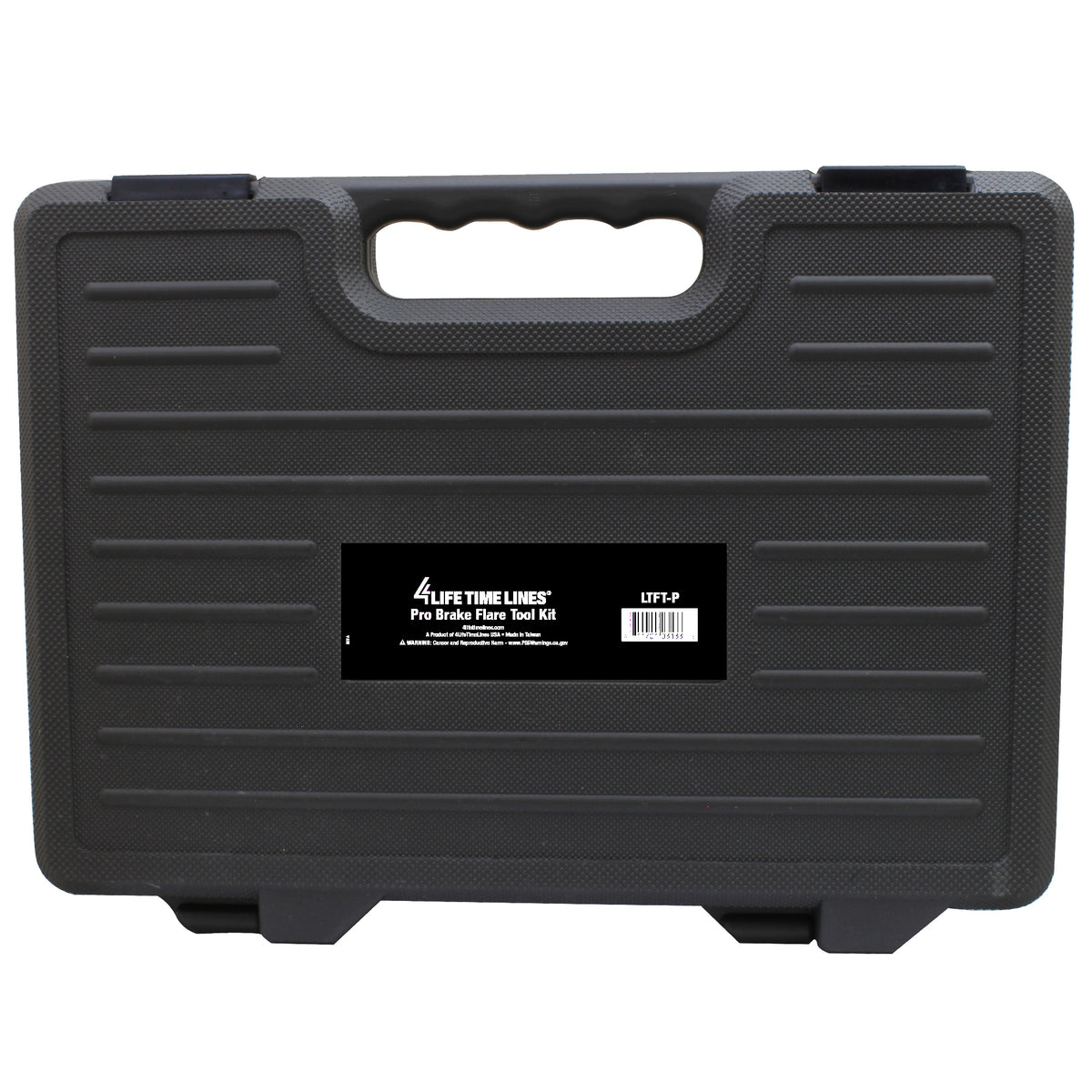

4LifetimeLines Pro Brake Flare Tool Kit LTFT-P carrying case, closed

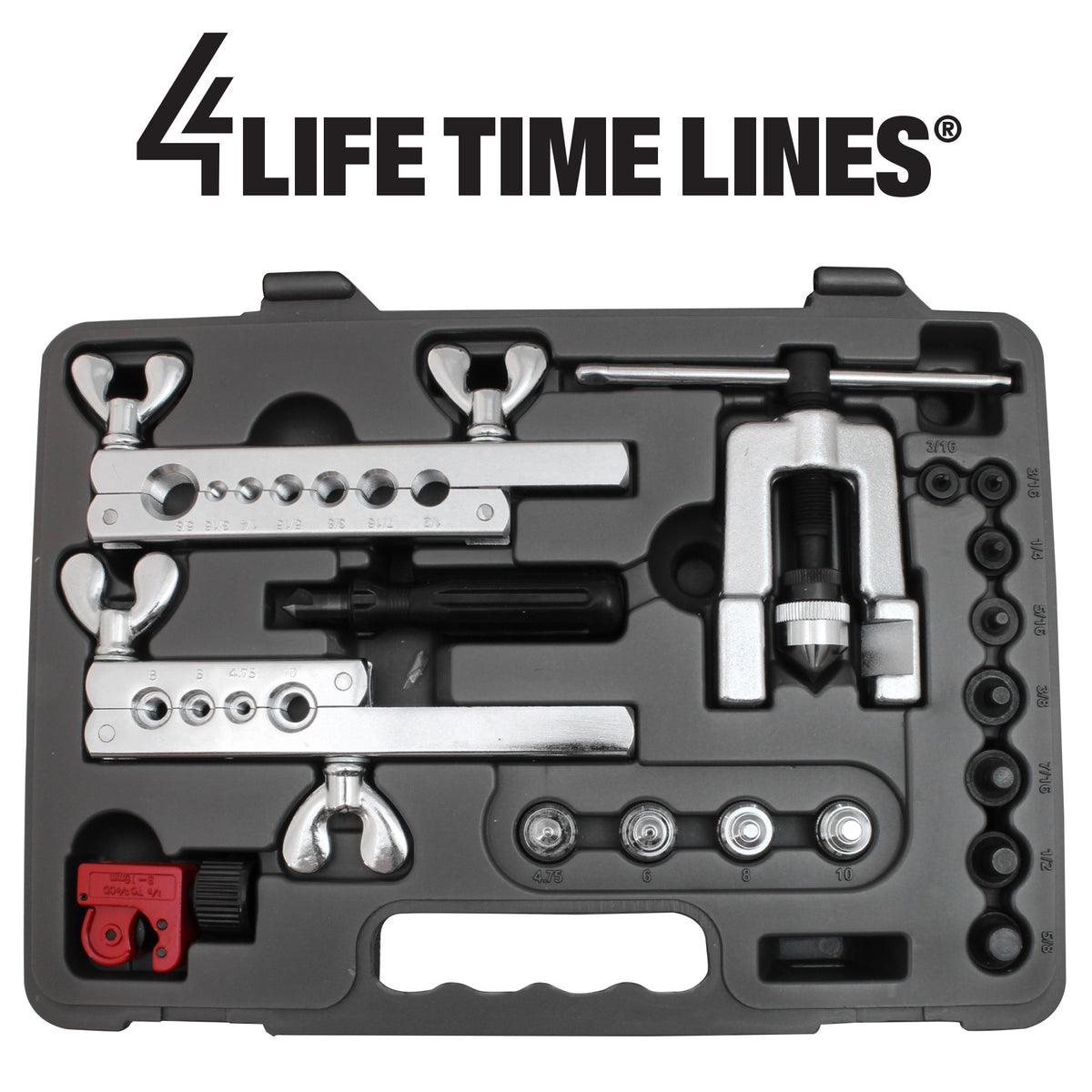

LTFT-P tray: SAE flaring bar 3/16 to 5/8 in, metric bar 4.75 to 10 mm, double-flare and bubble adapters, yoke, cutter, reamer

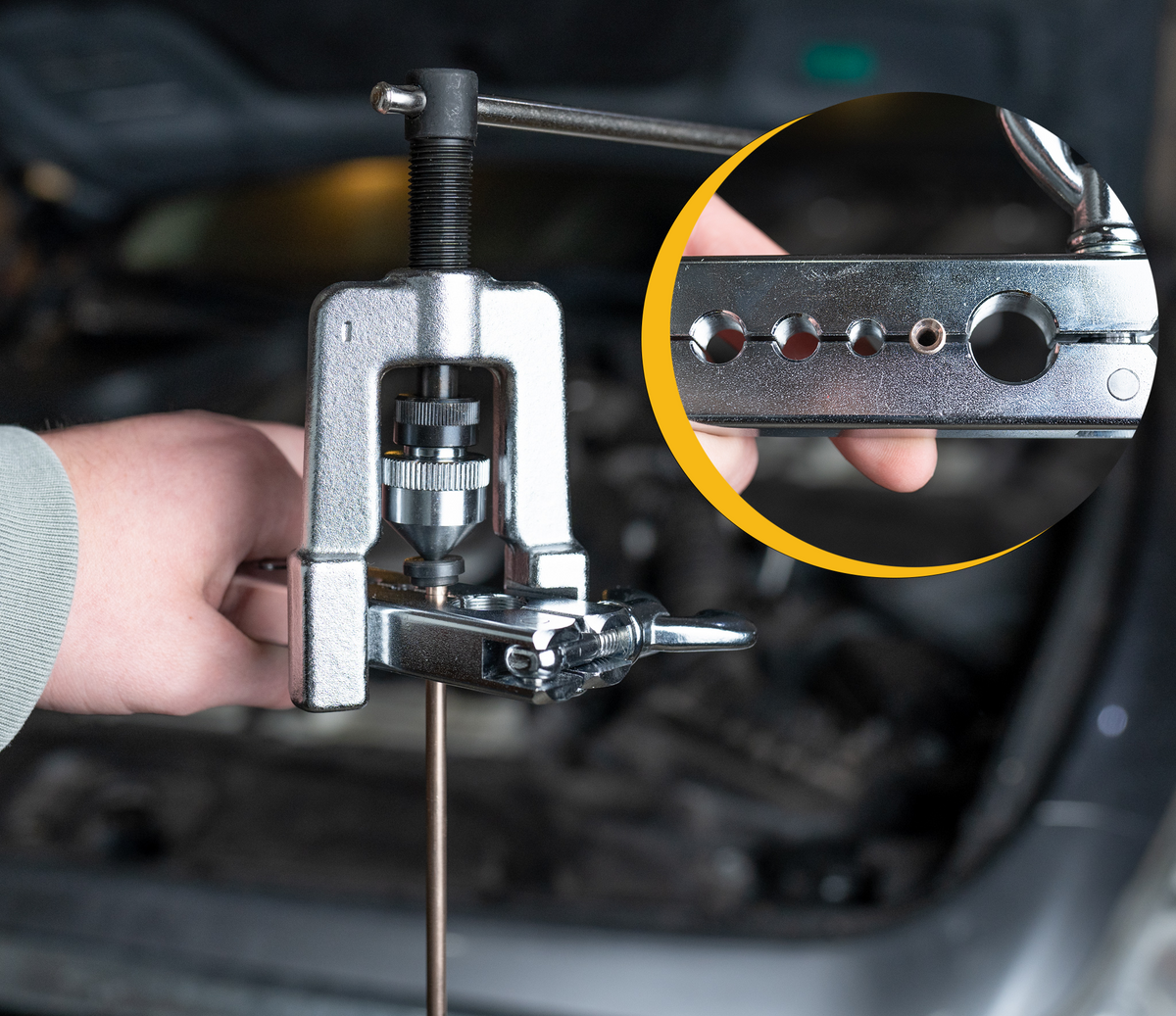

Flaring yoke and bar from the 4LifetimeLines LTFT-P kit forming a flare on brake line
4LifetimeLines Professional Brake Line Flare Tool Kit (LTFT-P) open case with flaring bars, adapters, yoke, cutter and reamer
4LifetimeLines Pro Brake Flare Tool Kit LTFT-P carrying case, closed
LTFT-P tray: SAE flaring bar 3/16 to 5/8 in, metric bar 4.75 to 10 mm, double-flare and bubble adapters, yoke, cutter, reamer
Flaring yoke and bar from the 4LifetimeLines LTFT-P kit forming a flare on brake line

4LifetimeLines Professional Brake Line Flare Tool Kit, SAE Double & ISO Bubble, 3/16" to 5/8"

$99.00
4.4
Rated 4.4 out of 5 stars
9 Reviews

SKU: LTFT-P

VISA
American Express
Mastercard
Discover
Union Pay

The 4LifetimeLines Professional Brake Line Flare Tool Kit (LTFT-P) makes SAE 45° double (inverted) flares on 3/16" to 5/8" tubing and ISO bubble flares on 4.75, 6, 8 and 10 mm tubing, for brake, fuel and hydraulic lines. It comes with a mini tube cutter, reamer and carrying case.

What's in the box

  • SAE flaring bar (3/16" to 5/8")
  • Metric flaring bar (4.75, 6, 8 and 10 mm)
  • SAE double-flare adapters, 3/16" to 5/8"
  • 4 metric bubble-flare adapters (4.75, 6, 8 and 10 mm)
  • Yoke with flaring cone
  • Mini tube cutter and reamer
  • Carrying case

How to use it

Cut the tube square with the cutter and ream the inside edge. Slide the tube nut on, clamp the tube in the matching hole of the flaring bar, then form the flare with the yoke: use a double-flare adapter first, then the cone, for an SAE double flare, or a bubble adapter for an ISO bubble flare. Set the tube height with the adapter and follow the instructions included with the kit; practice on scrap tubing first. Match the flare type to the fitting it will seal against.

Brake safety note: Use only SAE double (inverted) or ISO bubble flares on hydraulic brake lines. Single flares are not safe for brake systems.

Questions

Double or bubble flare? Match the flare on your existing lines and fittings. This kit makes both: SAE double (inverted) and ISO bubble.

What tubing can I flare? 4LifetimeLines lists the kit for steel, copper, aluminum and copper-nickel tubing.

Which sizes does it cover? 3/16" to 5/8" for SAE double flares and 4.75, 6, 8 and 10 mm for bubble flares. The full size list is under Specifications.

Warranty and support

Covered by the 4Lifetime Limited Lifetime Warranty (see 4lifetimelines.com/pages/warranty). Questions? Email hello@4lifetimelines.com or call 1 (855) 928-4024, Monday–Friday, 9:00 AM–5:00 PM ET.

Flare types: SAE 45° double (inverted), ISO bubble
SAE sizes: 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 5/8"
Metric (bubble) sizes: 4.75, 6, 8, 10 mm
Tubing materials: Steel, copper, aluminum, copper-nickel
Applications: Brake, fuel and hydraulic lines
Operation: Manual (bar and yoke)
Includes: SAE flaring bar, metric flaring bar, SAE double-flare adapters, 4 metric bubble adapters, yoke with cone, mini tube cutter, reamer, carrying case
Vehicle fit: Universal (not vehicle-specific)
SKU / barcode: LTFT-P / 811701031336
Warranty: 4Lifetime Limited Lifetime Warranty

  • 4.8★ from nearly 4,000 Amazon ratings
  • Free US shipping on orders $50+
  • Ships same day when ordered by 2 PM ET (Mon–Fri)
  • Lifetime warranty on every product

Lifetime Quality, Covered — for Life

Zero Risk, Maximum Confidence

Built to Endure. Guaranteed to Perform.

One-Time Purchase. Lifetime Assurance.

Lifetime Quality, Covered — for Life

Zero Risk, Maximum Confidence

Built to Endure. Guaranteed to Perform.

One-Time Purchase. Lifetime Assurance.

Lifetime Quality, Covered — for Life

Zero Risk, Maximum Confidence

Built to Endure. Guaranteed to Perform.

One-Time Purchase. Lifetime Assurance.

Lifetime Quality, Covered — for Life

Zero Risk, Maximum Confidence

Built to Endure. Guaranteed to Perform.

One-Time Purchase. Lifetime Assurance.

Lifetime Quality, Covered — for Life

Zero Risk, Maximum Confidence

Built to Endure. Guaranteed to Perform.

One-Time Purchase. Lifetime Assurance.

Lifetime Quality, Covered — for Life

Zero Risk, Maximum Confidence

Built to Endure. Guaranteed to Perform.

One-Time Purchase. Lifetime Assurance.

Lifetime Quality, Covered — for Life

Zero Risk, Maximum Confidence

Built to Endure. Guaranteed to Perform.

One-Time Purchase. Lifetime Assurance.

Compare the range

Which flaring tool is right for you?

Every 4LifetimeLines flaring tool makes clean, leak-free flares. The right pick comes down to how often you flare, the tube sizes you run, and whether you want cutting and bending built in. Here's how they stack up.

You're viewingProfessional Flare KitProfessional Flare Kit Flaring bar + precision dies  Master Flaring SetMaster Flaring Set Bar & yoke set + bender  Economy Flare KitEconomy Flare Kit Clamp-bar flare kit  Turret Flaring ToolTurret Flaring Tool Quick-change turret (handheld)  Hydraulic Flaring KitHydraulic Flaring Kit Hydraulic — up to 10 tons
Flare typesSAE 45° double & ISO bubbleSingle, SAE 45° double & ISO bubbleSingle, SAE double & ISO bubbleSAE 45° inverted, double & ISO bubbleSAE 45° double & ISO bubble
Tubing sizes3/16"–1/2" · 5 dies3/16"–5/8" · 7 dies3/16"–1/2" · 5 sizes3/16"–1/2" · 5 sizes3/16"–1/2" · 5 dies
Works onSteel, copper, aluminum, CuNiAluminum, copper, copper-nickelSteel, copper, copper-nickelBrake & fuel line tubingSteel, copper, aluminum, CuNi
WorkflowFlare + cut & reamCut · ream · bend · flareFlaring onlyFlaring onlyFlare + cut & ream
Best forRegular pro use — precise, leak-free jointsAll-in-one kit — DIY to pro, even copper plumbingBudget DIY & occasional flaresHigh-volume shops & fast on-vehicle workToughest tubing — effortless, repeatable flares
Price$99.00$62.00$274.00$456.00
You're viewingView Master Flaring SetView Economy Flare KitView Turret Flaring ToolView Hydraulic Flaring Kit

Professional Flare Kit YOU'RE VIEWING

TypeFlaring bar + precision dies
Flare typesSAE 45° double & ISO bubble
Tubing sizes3/16"–1/2" · 5 dies
Works onSteel, copper, aluminum, CuNi
WorkflowFlare + cut & ream
Best forRegular pro use — precise, leak-free joints
Price$99.00
You're viewing

Master Flaring Set

TypeBar & yoke set + bender
Flare typesSingle, SAE 45° double & ISO bubble
Tubing sizes3/16"–5/8" · 7 dies
Works onAluminum, copper, copper-nickel
WorkflowCut · ream · bend · flare
Best forAll-in-one kit — DIY to pro, even copper plumbing
Price
View Master Flaring Set

Economy Flare Kit

TypeClamp-bar flare kit
Flare typesSingle, SAE double & ISO bubble
Tubing sizes3/16"–1/2" · 5 sizes
Works onSteel, copper, copper-nickel
WorkflowFlaring only
Best forBudget DIY & occasional flares
Price$62.00
View Economy Flare Kit

Turret Flaring Tool

TypeQuick-change turret (handheld)
Flare typesSAE 45° inverted, double & ISO bubble
Tubing sizes3/16"–1/2" · 5 sizes
Works onBrake & fuel line tubing
WorkflowFlaring only
Best forHigh-volume shops & fast on-vehicle work
Price$274.00
View Turret Flaring Tool

Hydraulic Flaring Kit

TypeHydraulic — up to 10 tons
Flare typesSAE 45° double & ISO bubble
Tubing sizes3/16"–1/2" · 5 dies
Works onSteel, copper, aluminum, CuNi
WorkflowFlare + cut & ream
Best forToughest tubing — effortless, repeatable flares
Price$456.00
View Hydraulic Flaring Kit

Step by step

How to use this tool

The Pro kit makes SAE double-inverted and ISO / metric bubble flares with precision dies, plus a built-in cutter and reamer. Slide the tube nut on before flaring.

1

Cut and deburr

Square-cut the tube with the cutter, then ream the inside and chamfer the outside edge.

2

Slide the nut on

Fit the tube nut first, with the threaded end toward the end of the tube.

3

Pick the bar and clamp

Choose the SAE or metric flaring bar, set the tube to the correct height, and tighten both wing nuts.

4

SAE double flare

Fit the black die, place the anvil over it and tighten until it meets the bar, then swap to the cone anvil and turn down to fold the finished flare.

5

Metric bubble flare

Screw the correct silver anvil head (4.75, 6, 8 or 10mm) onto the yoke, place it over the tube, and tighten until it meets the bar.

6

Inspect

SAE ends should be bell-shaped and metric ends bubble-shaped. Do not use a flare with cracks or uneven edges.

Tip: always practice on a scrap piece of tubing first, and slide the tube nut onto the line before flaring — a finished flare won't pass back through the nut.
